Project Overview

The Bonanza Admin Dashboard is a comprehensive tool designed for the Bonanza team, featuring various dashboards with charts and tables to provide up-to-date data for decision-making. It has been expanded to include a consumer-facing dashboard for Vercado, enabling users to view stats on their sales and inventory.

Development Timeline

• Start Date: September 2023

Key Features

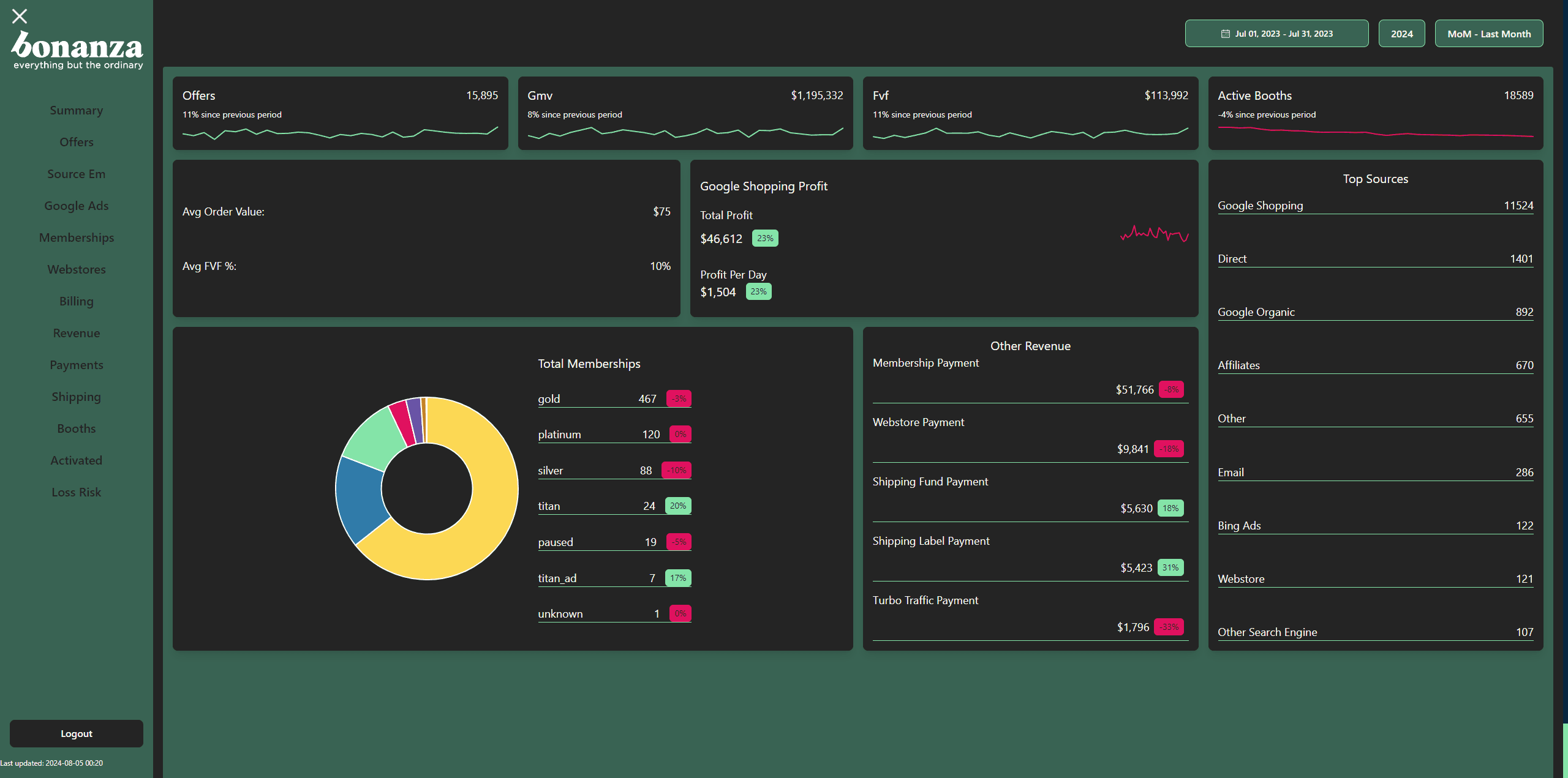

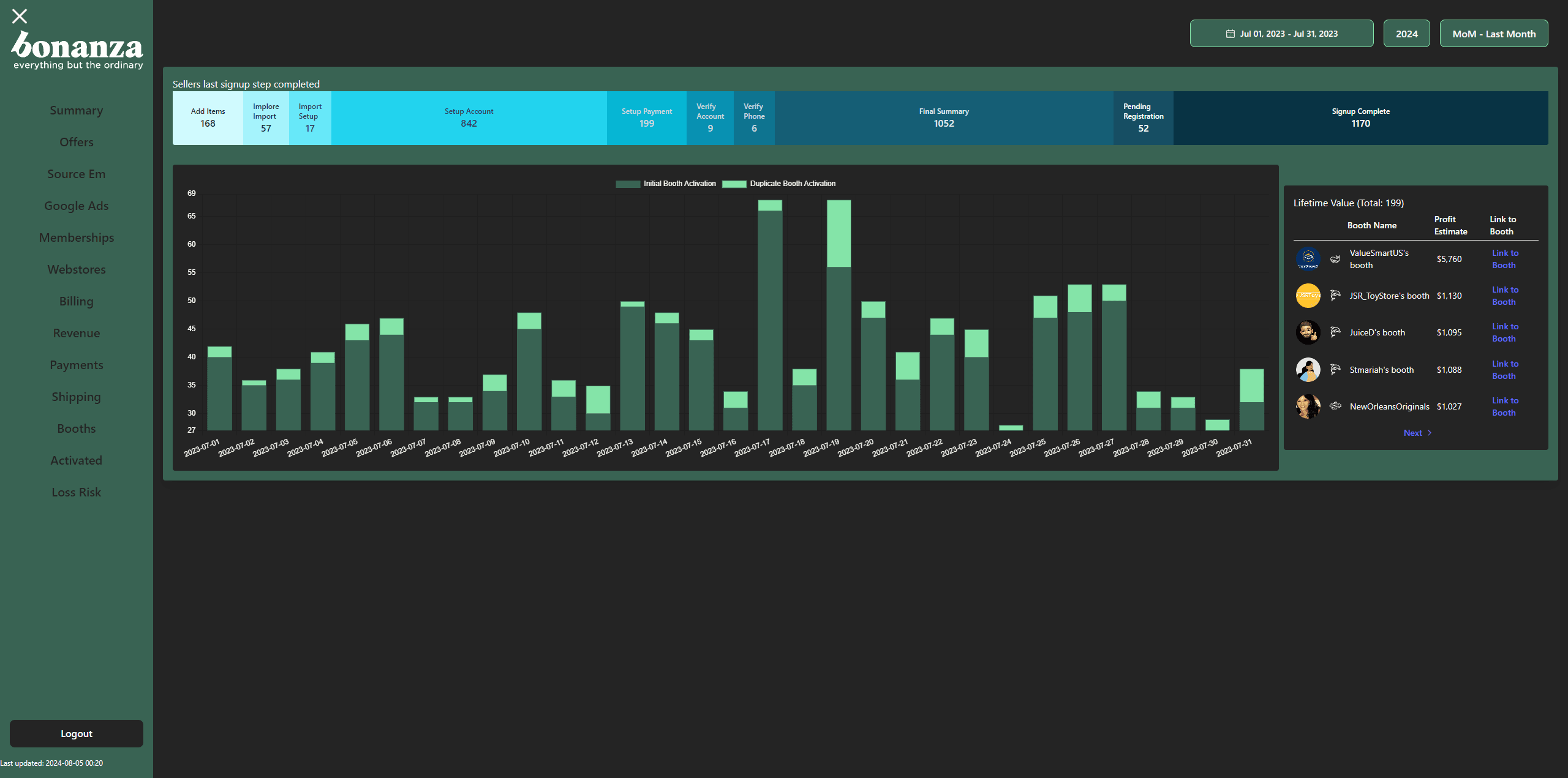

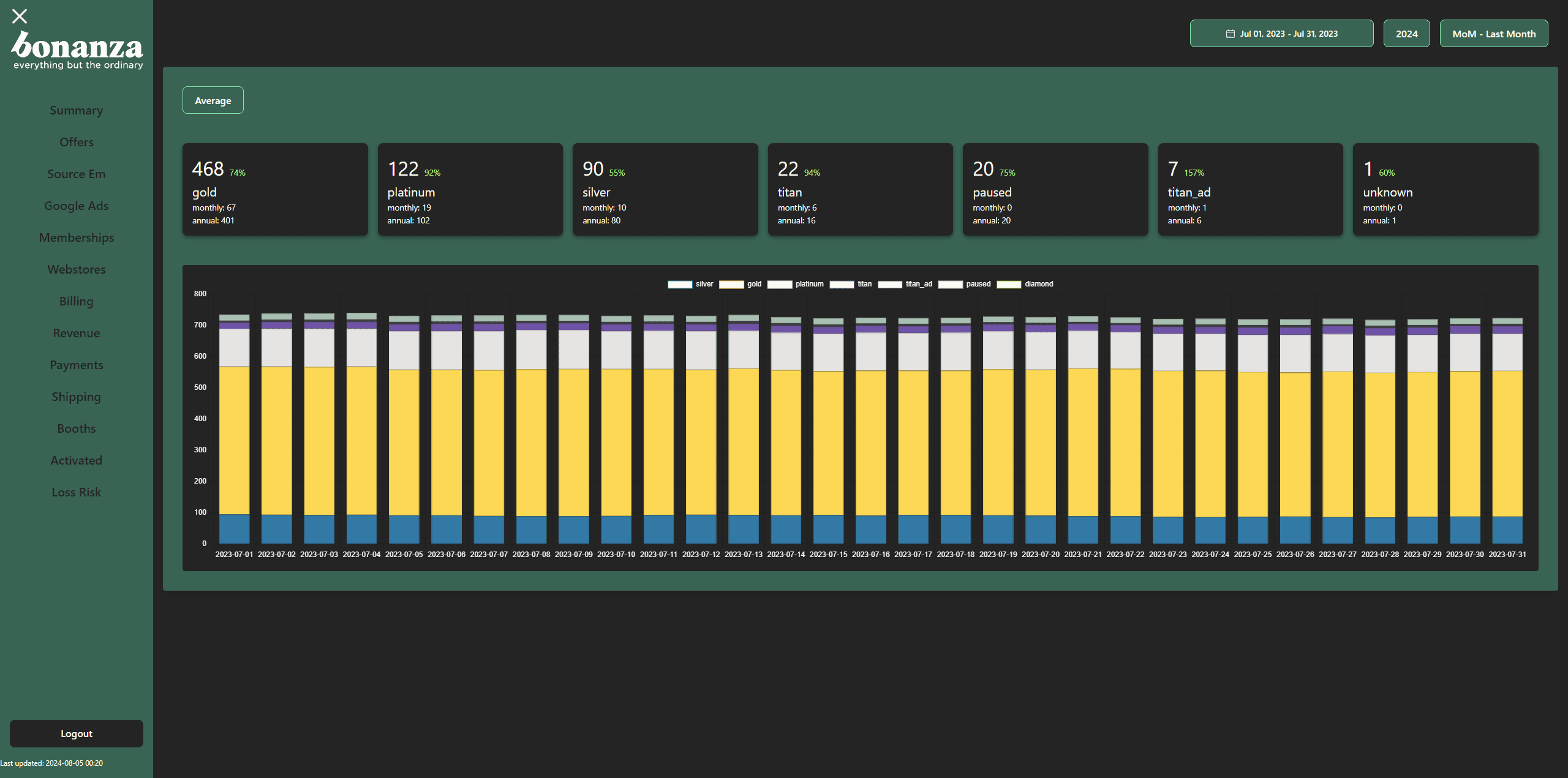

• Multiple dashboards for the Bonanza team
• Consumer-facing dashboard for Vercado (in progress)
• Real-time data visualization and user experience design

Technologies Used

• Backend: Python, MySQL, PostgreSQL, Pandas, Polars, AWS
• Frontend:React, Typescript, Tailwind CSS, Tanstack Router, Tanstack Query

Challenges and Solutions

1. Data Query Speed:
• Challenge: Slow data queries from a large dataset dating back to 2008 using MySQL 5.6 without advanced features.
• Solution:
• Optimized queries and data processing to reduce execution time from over 10 minutes to less than 5 minutes.
• Utilized reusable functions and advanced techniques to clean and optimize code.
• Integrated Polars, an alternative to Pandas written in Rust, for significant speed improvements.
2. Expanding to Consumer-Facing Dashboard:
• Challenge: Initially designed for internal use, the dashboard needed to be modified for Vercado customers. This required changing authentication, setting up a new PostgreSQL database, and ensuring secure, private access for different user types.
• Solution:
• Modified authentication system and created a PostgreSQL database.
• Implemented private routes using Tanstack Router to ensure Bonanza users see only the Bonanza dashboard and Vercado users see their own dashboard.
• Developed a backend Express server to connect to each user’s PostgreSQL database and provide data to the frontend dashboard.
• Deployed the new server on AWS to ensure scalability and reliability.

Development Process

1. Backend Development
• Queried Bonanza’s database and processed data using Python and Pandas.
• Set up an Express server for Vercado users, connected to PostgreSQL databases, and deployed it on AWS.
2. Frontend Development
• Built the frontend with React and Typescript.
• Developed 13 different dashboards for Bonanza and 2 for Vercado.
• Implemented private routing and user-specific data access.

Outcome

• The optimized dashboard now provides faster data retrieval and processing, enhancing the user experience and reducing resource usage on the database.
• Successfully expanded functionality to serve both internal staff and external customers, ensuring secure and efficient data access.
